The SW application WEEKLY CHANNEL LOGGER (option supplied in the ROVER HD series) is a useful tool to monitor and record over time (from 30 minutes to one week) the trend of the main parameters of receiving a digital signal: TV, Cable, Satellite, Radio or FM (DAB op. did not on all models), practically record the Quality of Service (QoS).

This application is especially suitable for reception problems that occur occasionally. The
application allows you to measure, store and display on the instrument ; (locally or remotely*)
the parameters course of the digital signals under test:

• DVB-S/T/C = Power, MER, ERROR, bBer, aBer;
• DVB-S2/T2/C2 = Power, MER, ERROR, aBer, Lber, PER, Ldcp.

* For remote control reading need a LAN or a GPRS/UMTS optional.

Each parameter recorded, is graphically represented on the display with different colors,
so that you can easily identify, see Figure 1. You can choose the time interval of monitoring the received signal by selecting, from a minimum of 30 minutes, to a week (168 h).

Note: On some models of HD series, the recording made (LOGGER file) can be saved directly to the memory of the instrument, or exported to a USB memory stick into a file “csv” format. The LOGGER file saved, they can be analyzed later in a spreadsheet for processing, statistics or graphs.

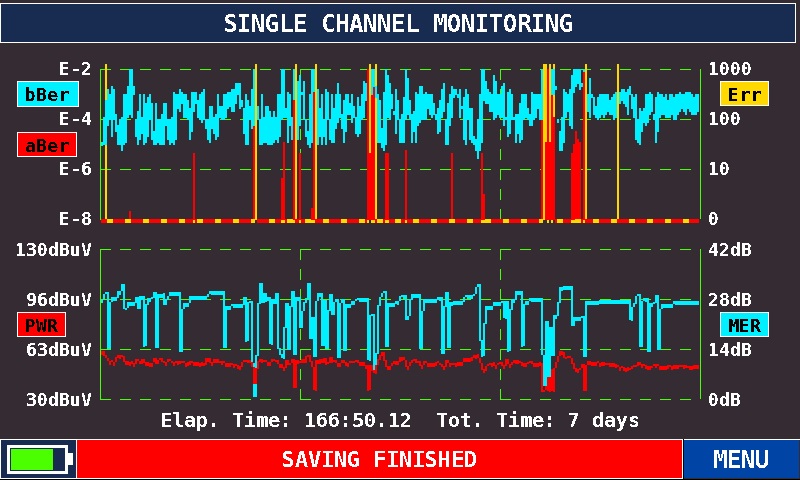

Figure 1: WEEKLY CHANNEL LOGGER  Trend graph 5 measures in 7 days (168 hours) of the channel 26 SFN Reception with numerous variations

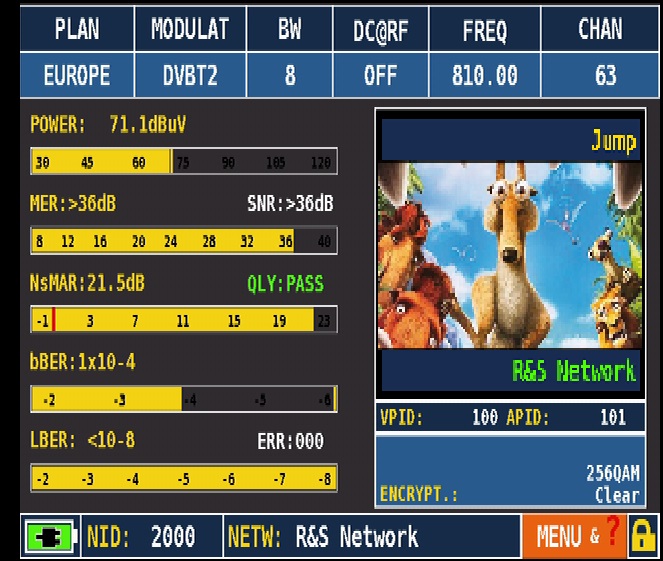

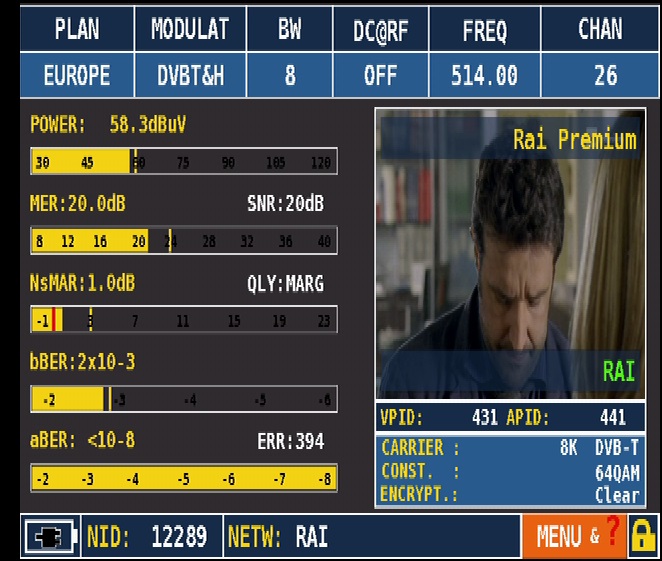

1) Tune the TV channel to be analyzed: DVB-T2 (Figure 2) or DVB-T (Figure 3)  ;
2) Select/touch the “MENU” button (Figure 2 or 3) at the bottom right of the display to display the windows MENU;

Figure 2: Measurements DVB-T2	Figure 3: Measures H and DVB-T

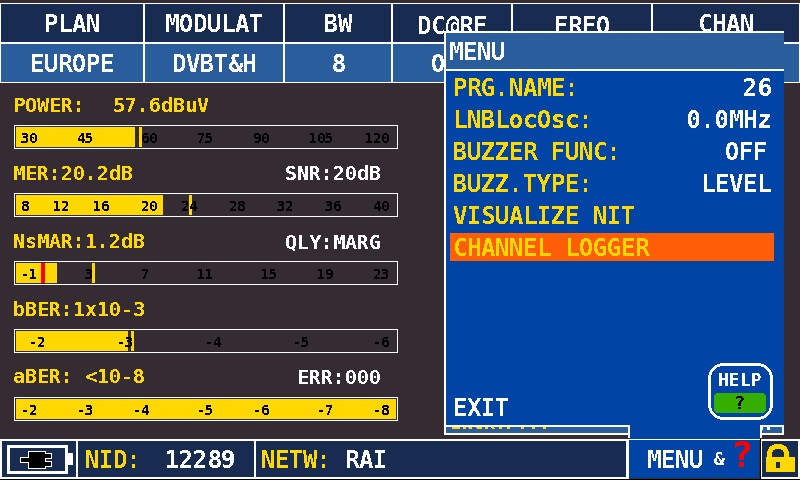

3) In MENU windows menu, select/touch on the word “CHANNEL LOGGER” (Figure 4);

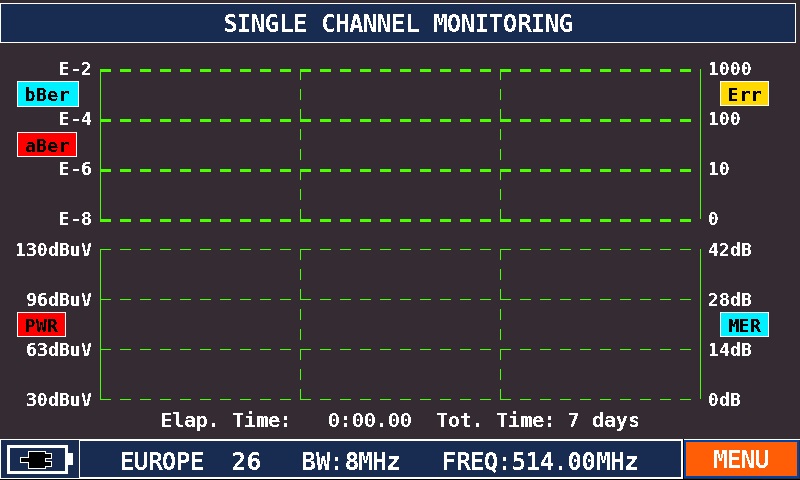

4) Selct/touch the “MENU” button (Figure 5);

Figure 4: windows MENU	Figure 5: MENU  Icone

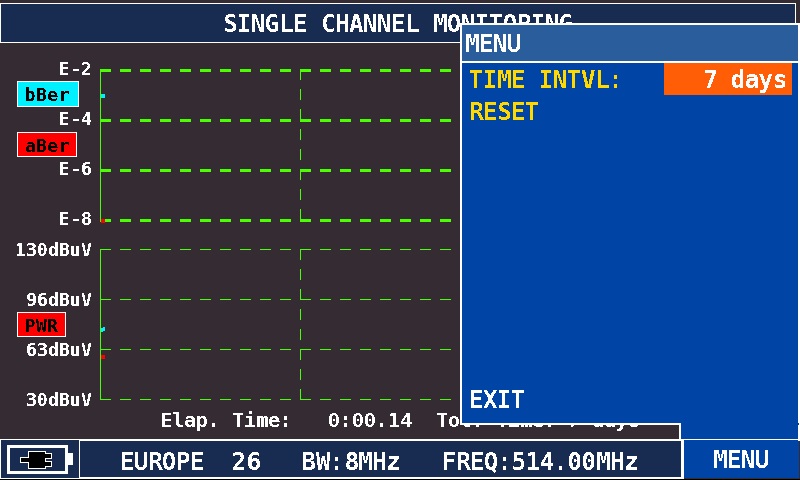

5) In the windows MENU touch on the word “TIME INTVL” (Figure 6) and select the desired monitoring time: In the fig. 6 seven day;

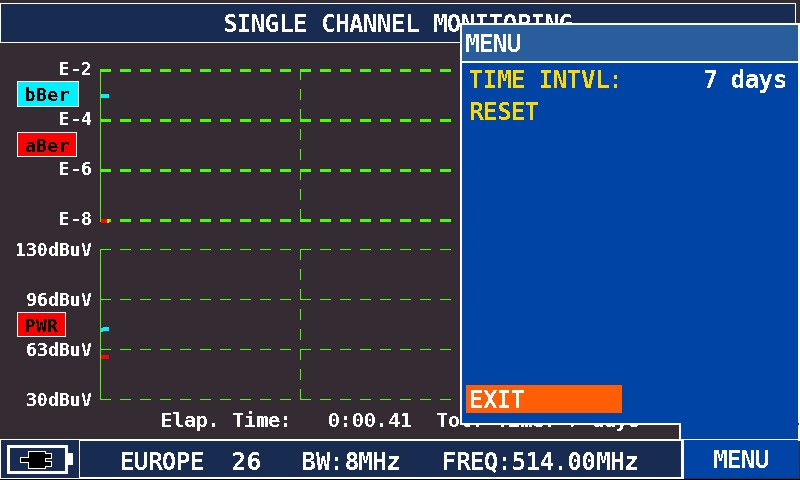

6) At the end select/touch “EXIT” (Figure 8) to exit the windows MENU menu and to start the CHANNEL LOGGER recording;

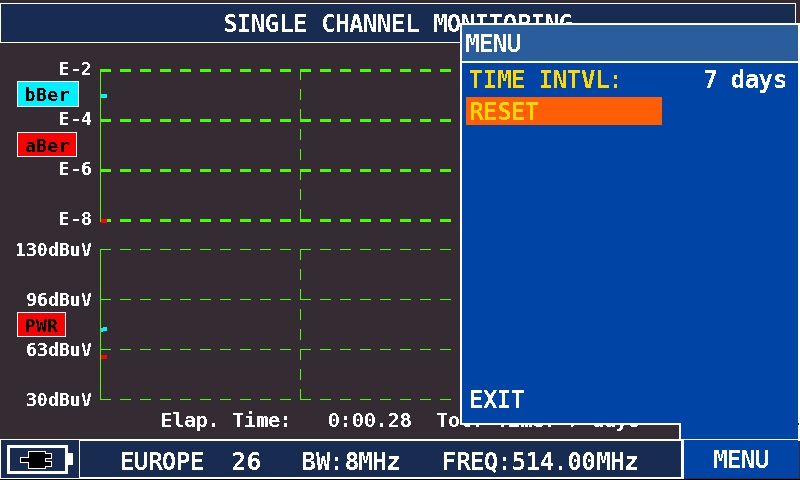

Note: Touch the “RESET” (Figure 7) if you like to reset the signal recording in progress;

Figure 6: Select TIME INTERVAL	Figure 7: Reset the recording progress

Note: If necessary, press ones the “HOME” button (Figure 9) to stop recording and exit the CHANNEL LOGGER recording in progress;

Figure 8: EXIT function	Figure 9: Key HOME

Here are some examples of CHANNEL LOGGER:

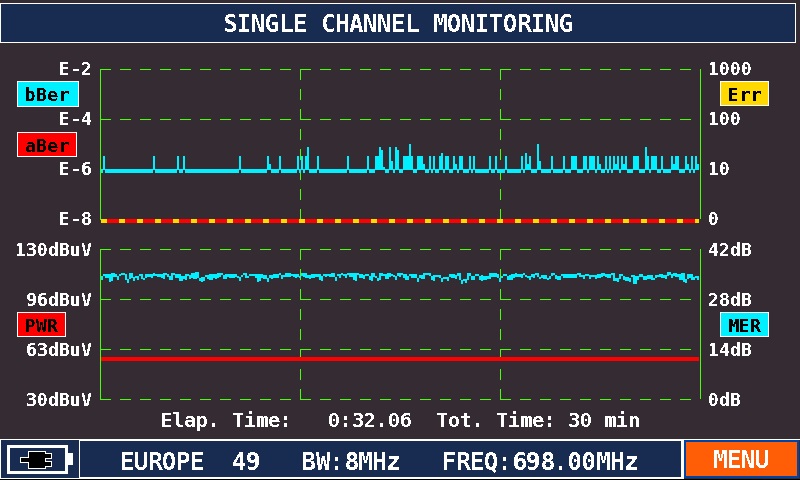

30 minutes CHANNEL LOGGER: DVB-T2 signal Channel 63 SFN graphic trend Correct signal reception	30 minutes CHANNEL LOGGER: DVB-T signal Channel 49 SFN graphic trend Correct signal reception

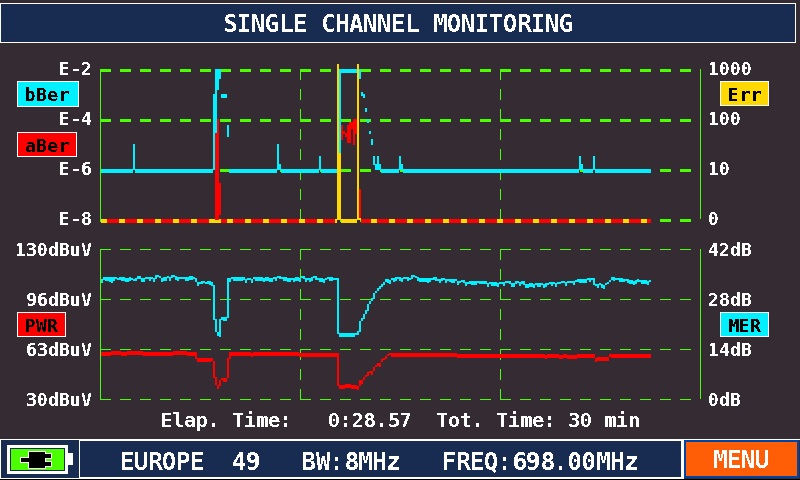

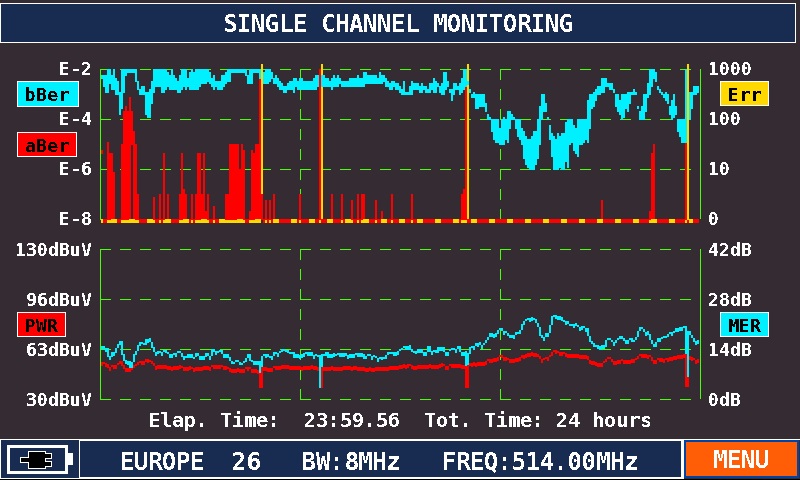

30 minutes CHANNEL LOGGER: DVB-T signal Channel 49 SFN graphic trend Reception with 2 interruptions	24 h CHANNEL LOGGER: DVB-T signal Channel 26 SFN graphic trend Reception with numerous interruptions

Note:

• MENU (written and graphic) of the figures shown in the following “F.A.Q.” may vary from model to model without notice.
