RF Over FIBER LINK for Cruise Ships & Buildings

ROF 9 & ROF 4-IU

10/50-3000MHz • For  SATELLITE – VHF/UHF – GPS – VSAT – SNG

These Products are very well shielded and specially designed to create fixed or temporary RF over Fiber Links in a reliable, simple and fast way.

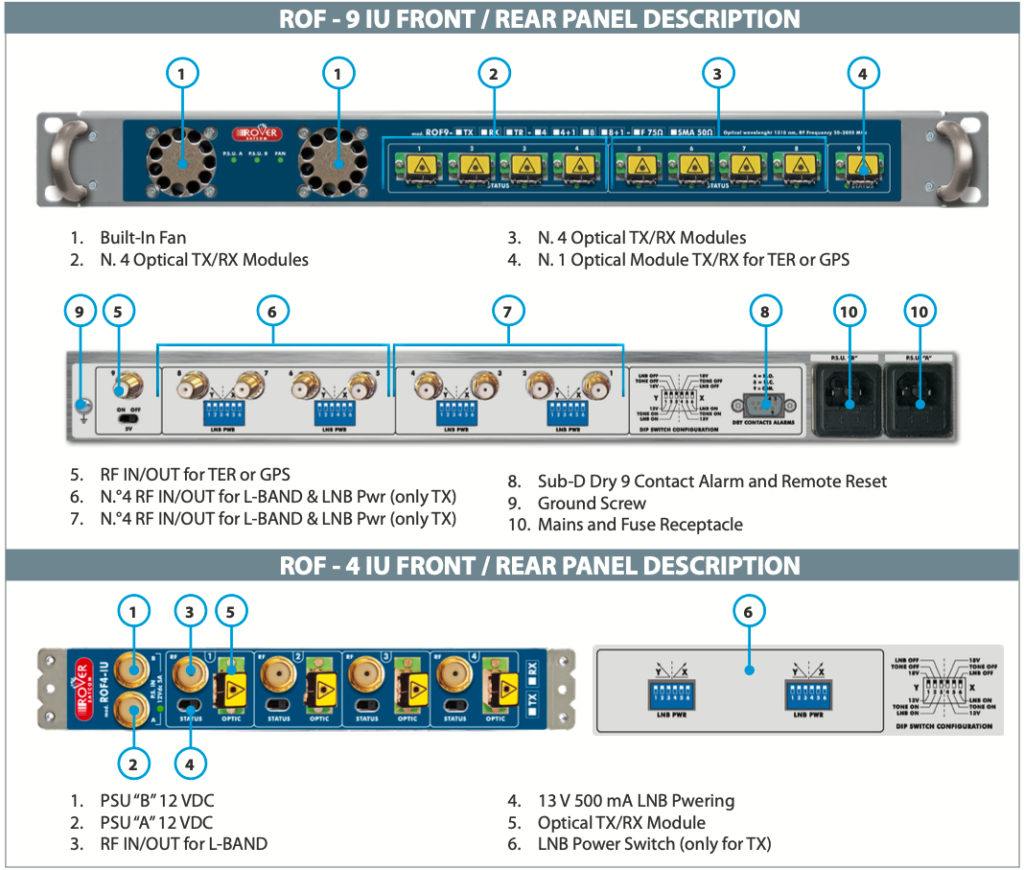

This new range of links includes by 1unit rack with up to 8+1 RF over fiber modules (ROF 9) and a modular equipment with 4 modules (ROF 4). They can be configured as TX, RX, or mixed as a Tranceiver.

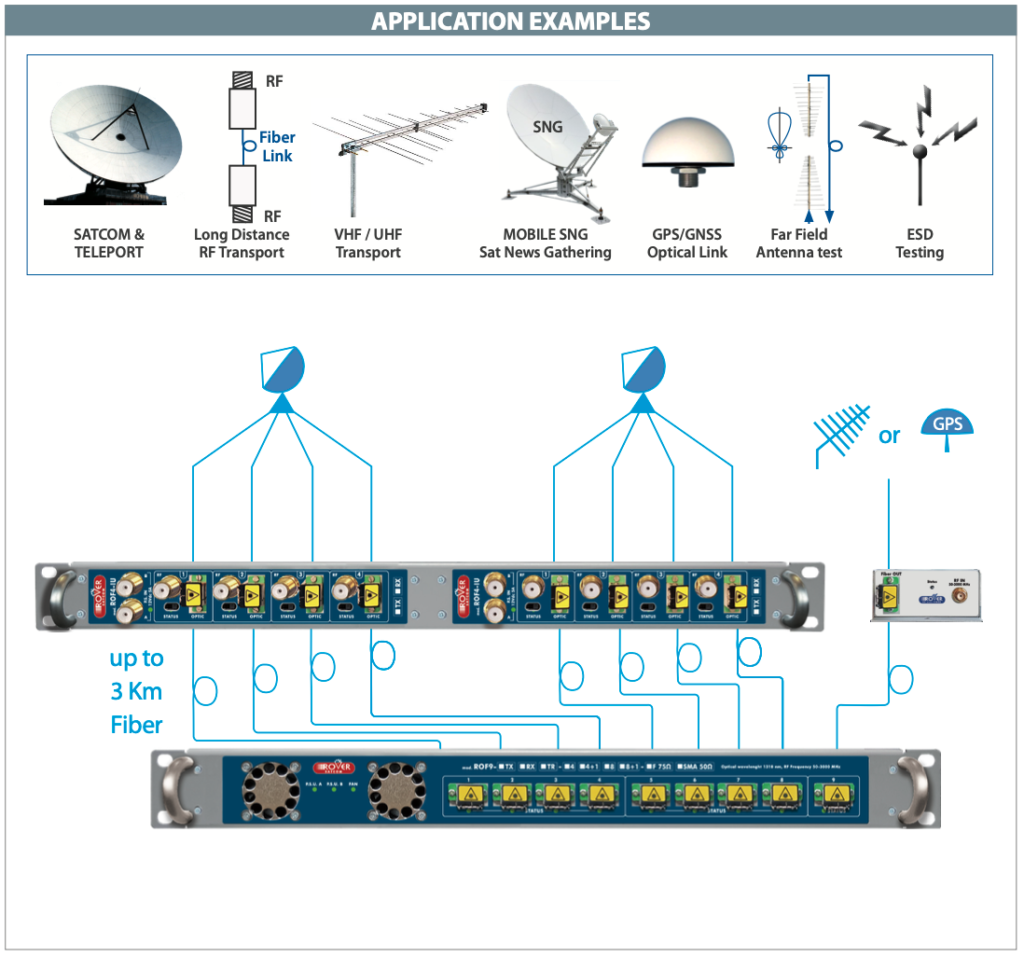

Due to exceptionally Wide Dynamic Range these modules can be used for many different applications, example: Wireless Camera and Microphone systems, Satcom applications, VHF & UHF signal transport, Mobile Sat Link, GPS & GNNS applications, Far Field antenna test, ESD testing, SNG News Gathering.

Upon request Rover can supply the modules with different Presets or Adjustable Link gain and different Optical and RF connectors. Our Sales and Technical staff are available to support and advise for whatever need.

BENEFIT

  • Presettable Link gain: from -10 to +20 dB
  • RF IN power Measurement (TX)
  • RF OUT power Measurement (RX)
  • 5 Vdc to RF IN for GPS-GNNS Active Antenna
  • Multiple TX or RX in a single unit
  • Transceiver version available, TX & RX
  • 1310 or 1550 nm version available
  • 13/18 Vdc to RF IN for LNB powering & 22 KHz

FEATURES

  • Transport all formats: DVB-T2/S2/C-ATSC-DAB-FM-GPS-GNNS
  • Protected LNA/LNB feed with resettable fuse
  • Exceptional Wide Dynamic Range
  • Analog Monitor Alarm Output for:
    TX laser current/Received Optical power
  • Compatible with Other Links

Download
ROVER SATCOM - ROF16-4-X (PDF file - 6.24 Mb) - Download here
