Splitter attivi multipli in banda L-SAT

RAS3

700-3000 MHz
5 Years Warranty

MAIN FEATURES

  • Especially designed for SATCOM SYSTEM INTEGRATOR
  • Meets strict specifications like: OIP3, R.L. and Flatness
  • Inputs RF Port Number: 1 or 2 or 3 or 4
  • Outputs Port Number: 4, 8, 16, 24, 32
  • Available SPLITTER SLOT:
    – N. 4 with 4 ways each (total 4 IN & 16 OUT)
    – N. 4 with 8 ways each (total 4 IN & 32 OUT)
    – N. 2 with 16 ways each (total 4 IN & 32 OUT)
  • Available optional RF connectors: F, SMA, BNC 75 & 50 ohm
  • Redundant PSU from 2 different Power lines
  • Dry contact Alarm for: PSU and LNBs (optional)
  • Fully compatible with all existing System

MAIN BENEFIT

  • WIDE BAND 700-3000 MHz flat (extended Band)
  • Splitter (& Future Combiner) function, all in 1 U 19” Rack
  • Easy assembly and fully configurable, from 1 Input to 4 Outputs and up to 4 Inputs to 32 Outputs

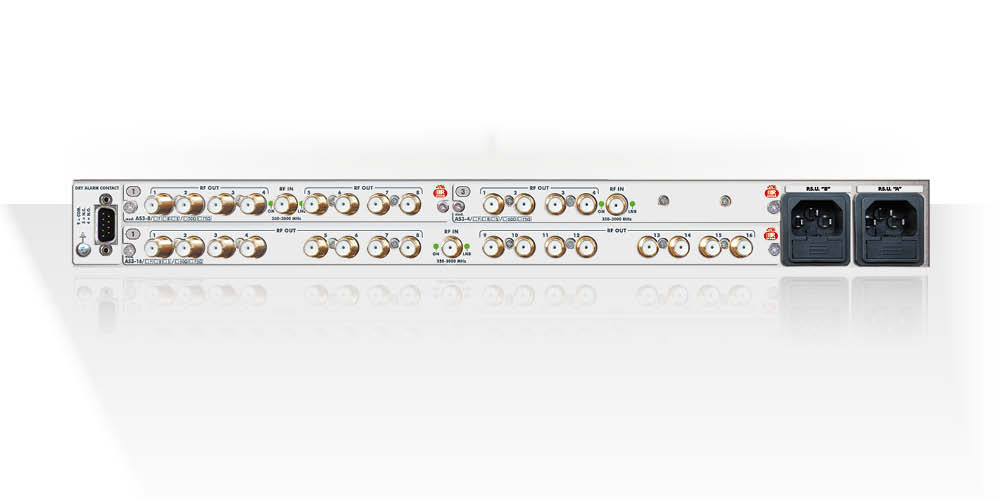

  • Hot Swap Plug-in RF Splitter Module on rear panel:
    – Programmable LNB Power with on module memory
    – LED for LNBs and Power Supply dry contact Alarms
  • Full Custom expandable and rack space optimization

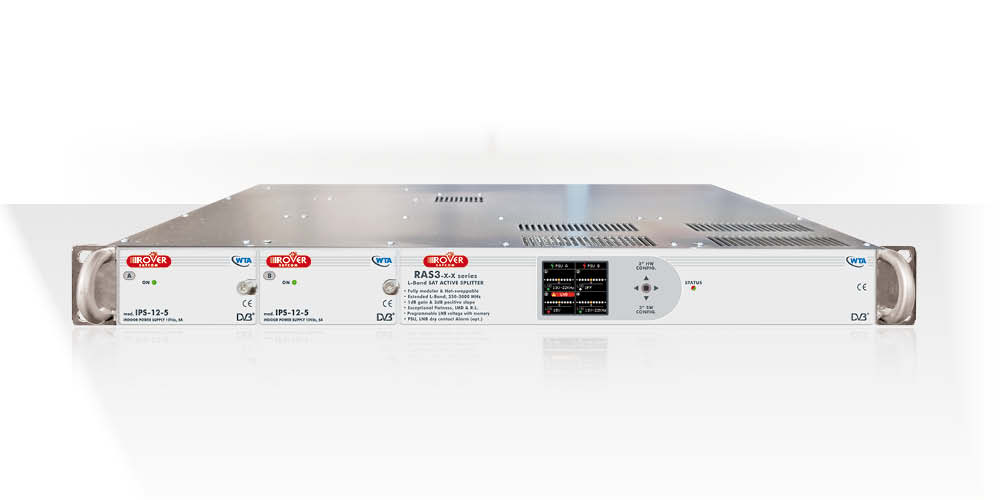

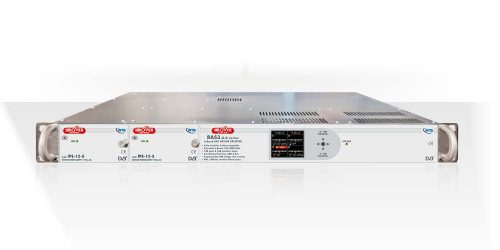

  • ON-BOARD: 1,8” LCD Display with Keyboard controller for configuration & Alarms Status

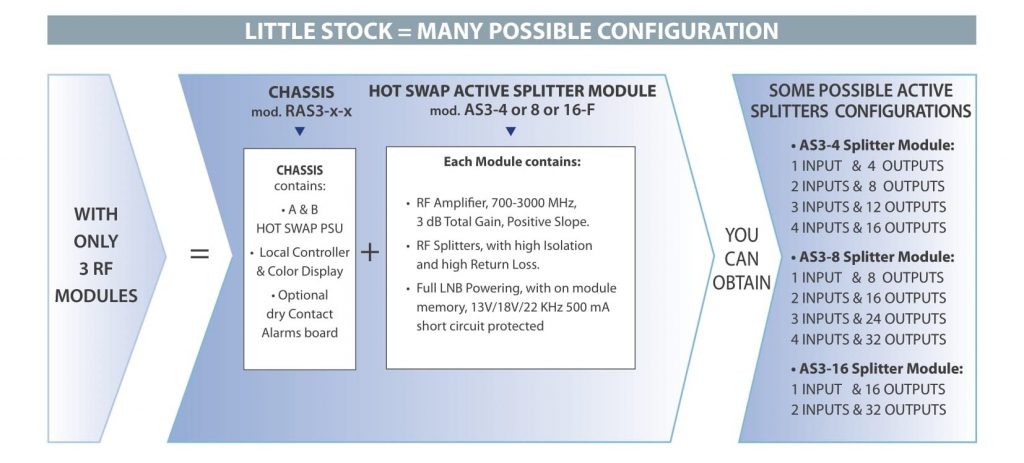

ROVER SATCOM - RAS-3 & RAC-3 - Main Features & Benefit - v1_3



RF PORT CAPACITY:

  • Input Port Number: 1 or 2 or 3 or 4
  • Output Port Number: 4, 8, 16, 24, 32

RF SPECIFICATIONS:

  • Frequency Range = 700-3000 MHz
  • Connectors = F (or BNC or SMA opt.)
  • Impedance = 75 Ohm (or 50 Ohm opt.)
  • Max INPUT Level = 0 dBm typ.
  • OP1dB = +17 dBm
  • Damage Input Level = 15 dBm
  • Input R.L. = >18 dB, 14 dB min.
  • Output R.L. = >18 dB, 14 dB min.
  • Total Gain = 3 dB, with positive slope
  • Gain stability versus Temperature = 0,5 dB from -30° to +60° C
  • L Band Flatness = ± 1 dB, 1,5 dB max
  • Full Band Flatness = ± 1,5 dB, 2 dB max
  • Flatness in 36 Mhz interval = ± 0,1 dB, 0,2 dB max
  • Isolation between adjacent out Port = 24 dB typ., 22 min.
  • IMD = < – 40 dB (2 Tones at -13 dBm)
  • Noise Figure = 9 dB

LNB POWER CONTROL (on each AS3 Module):

  • D.C. VOLTAGE = OFF, 13V, 18V (or 24 optional) max 500 mA for
    each Input
  • TONE = 22 KHz ON/OFF
  • ALARM INDICATION = Via LED, DISPLAY and dry contact

DRY CONTACT ALARM BOARD (optional):

  • CONNECTOR = SUB-D9 Male
  • CONTACT LOAD = 65 V – 400 mA
  • A & B MAINS PSU = one defective or both
  • LNB = dc Short Circuit

REDUNDANT POWER SUPPLY:

  • N. 2 AC MAINS PSU = 110-240 VAC (with 2 separate receptacle for 2 separate Power LINE)
  • AC POWER CONSUMPTION = < 25 VA
  • N. 1 EXT DC PSU = 48 V D.C. (optional)

GENERAL SPECIFICATIONS:

  • SLIM CASE = 19” 1U Rack (43 cm deep)
  • 1,8” Oled LCD Display
  • Keyboard & Joystick
  • NET WEIGHT = from 3 to 5 Kg related to the Splitters modules number
  • SAFETY = EN 50 083-1 and EN 60 950.
  • ENVIRONMENT:
    – Temperature range: –30° / + 55° (max 60°)
    – Umidity 95%
  • EMC = EN 50 083-2

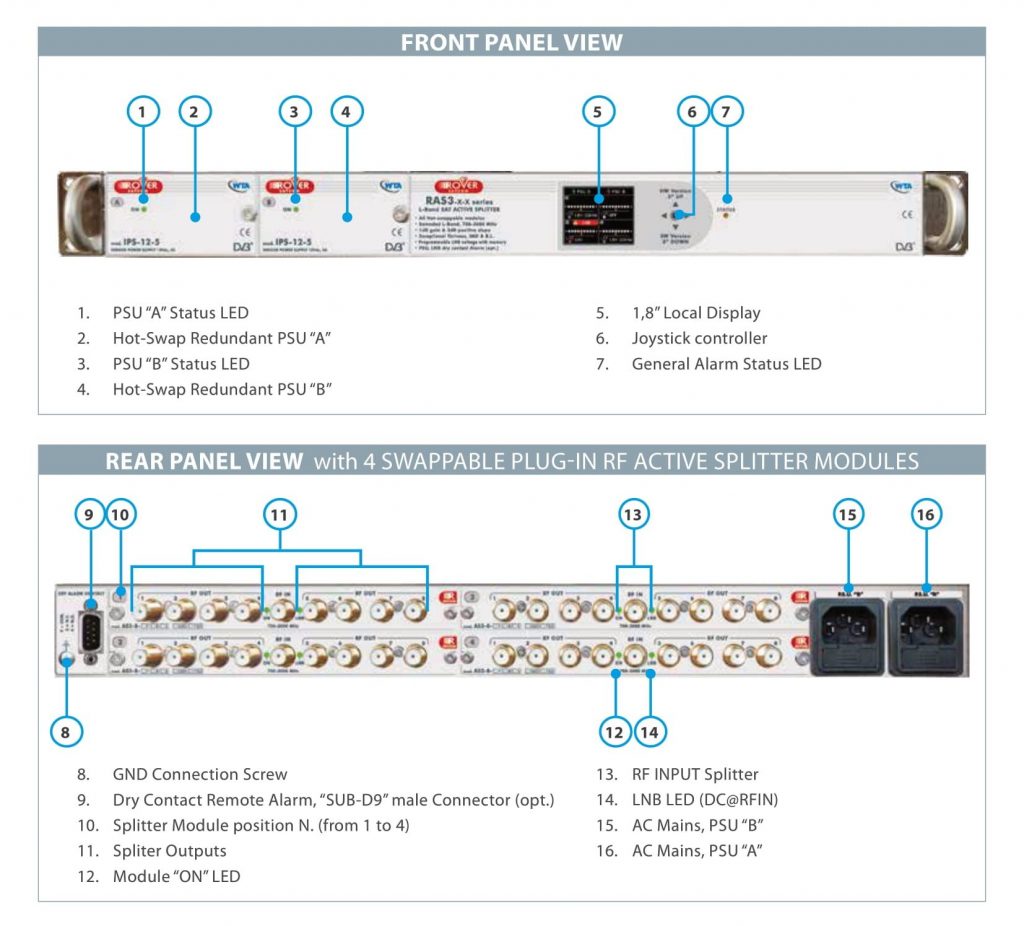

ROVER SATCOM - RAS-3 & RAC-3 - Physical & Connections - v1_3

ROVER SATCOM - RAS-3 & RAC-3 - Active Splitter Module 1 - v1_3 ROVER SATCOM - RAS-3 & RAC-3 - Active Splitter Module 2 - v1_3 ROVER SATCOM - RAS-3 & RAC-3 - Active Splitter Module 3 - v1_3

ROVER SATCOM - RAS-3 & RAC-3 - Configuration Examples - v1_3

ROVER SATCOM - RAS-3 & RAC-3 - Code & Options - v1_3
