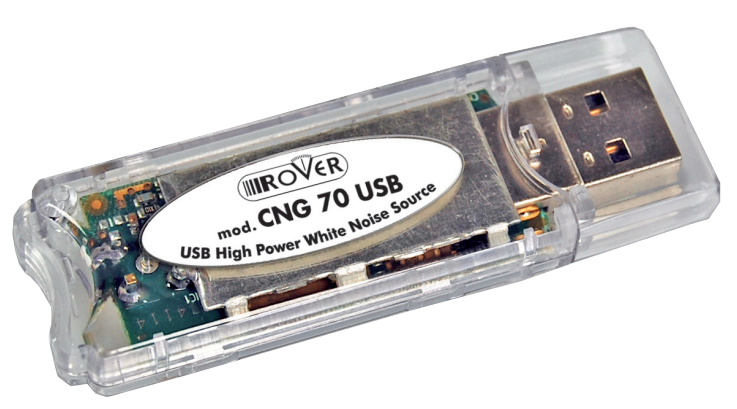

High Power White Noise Source

• Freq. Range: 4 – 2.500 MHz
• Noise type: White Gaussian
• ENR: 70 dB 75 Ω 25°C
• Output power: – 56 dBm (Mesured at 100 KHz spectrum RBW)
• Flatness: 1,5 dB typ. 2 max
• Impedance: 75 Ω, SMB, (50 Ω opt.)
• PSU: USB, 5 Vdc, 80 mA
• Size: USB stick

Turn your Commercial Spectrum Analyzer into a Scalar Network Analyzer to measure:

• ACTIVE DEVICES: GAIN, FLATNESS, BW and WSWR *
• PASSIVE DEVICES: LOSS, FLATNESS, BW and VSWR *
• COAX CABLE/REFLECTOMETER: LOSS, LENGTH, SHORT-CIRCUIT distance **, OPEN CIRCUIT distance ** and Impedance mismatch

* With RF Bridge
** With simple slide ruler, depending on cable typez

Note *: All technical specifications are subject to change without prior notice.
