Controlled LNB/LNA Powering Inserter
CONTROLLED LNB/LNA POWERING INSERTER
LPI-C-10-V-S

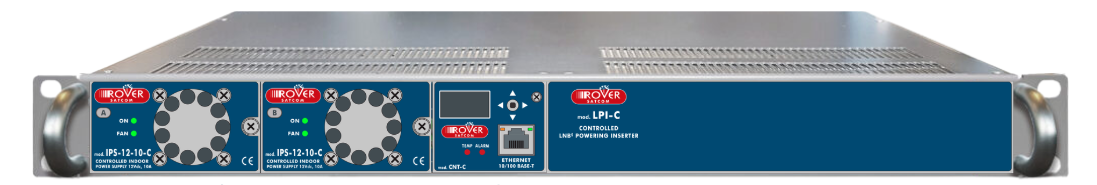

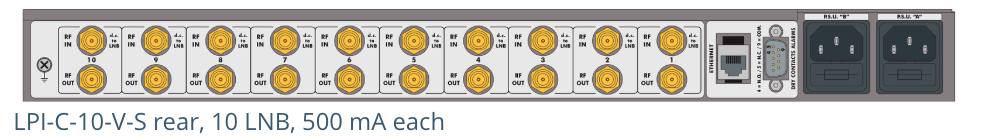

1 rack unit, Controlled LNB/LNA Powering Inserter
Independent Voltage Selection for up to 10 Power output
Characteristics
- Up to 10 or 5 Power Outputs with independent Voltage Selection 13/18 V, 22 KHz

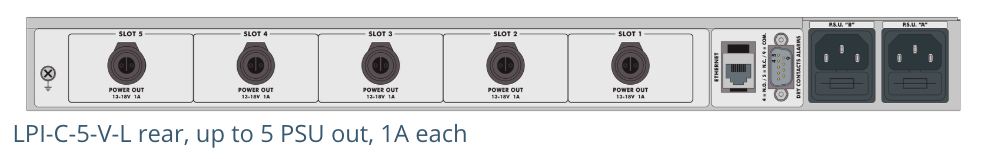

- Up to 500 mA (1A with 5 Outputs) Current per path, with independent
- Short Circuit Protections, measures & Alarms
- Dual redundant Hot-Swap PSU with related LEDS & Dry Contacts Alarms
- WEB interface with alarms & SNMP
Features
RF SPECIFICATIONS: (not for L Version)
- FREQ. RANGE = 5-3000 MHz
- CONNECTORS = F (f) [BNC (f) or SMA (f) opt.]
- IMPEDANCE = 75 Ohm (50 Ohm opt.)
- RETURN LOSS IN/OUT = > 16 dB
- INSERTION LOSS = 0,3 dB typ (0,8 dB@34 Hz)
- MAX. POWER INPUT = + 30 dBm
- FLATNESS IN 36 MHz WINDOW = < 0,3 dB
- ISOLATION BETWEEN ADJACENT PATHS = > 85 dB
POWER CONTROL:
- D.C. VOLTAGE = OFF, 13V, 18V
- 22 KHz TONE = ON/OFF
- MAX Current for each Input = 500 mA
(1A for the L version 5 out)
- MAX Overall Current = 10 A
- Voltage Measure and Alarm for each output
- Current Measure and Alarm for each output
DRY CONTACT ALARM:
- CONNECTOR = SUB-D9 Male
- CONTACT LOAD = 65 V – 400 mA
- A & B MAINS PSU = one defective or both
- DC Short Circuit & Pwr consumption at LNB
DUAL REDUNDANT HOT SWAP PSU:
- N. 2 AC MAINS PSU = 110-240 VAC
- AC POWER CONSUMPTION = 60 VA
- FAN gear alarm
- Voltage alarm
GENERAL SPECIFICATIONS:
- SLIM CASE = 19” 1U Rack (35 cm depth)
- NET WEIGHT = 4,8 Kg
- SAFETY = EN 50 083-1 and EN 60 950.
- ENVIRONMENTAL CONDITIONS:
- – Temperature range: –40° / + 55° (max 70°)
- – Umidity 95%
- EMC = EN 50 083-2
