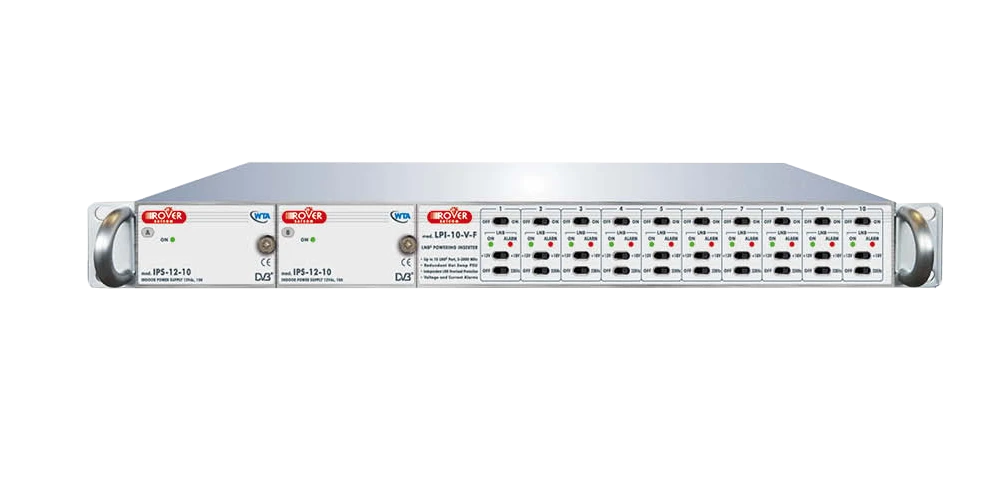

LNB Powering Inserter
LNB POWERING INSERTER
LPI-10-V-F
Independent Voltage Selections
13/18 V & 22 KHz for up to 10 LNBs
Characteristics
- 5 – 3000 MHz ultra wide band Operating Frequency Range
- Up to 10 LNBS with indipendent Voltage Selection 13/18 V, 22 KHz
- Up to 500 mA Current Consumption per path, with indipendent Short Circuit Protections & Alarms
- Dual redundant Hot-Swap PSU with related LEDS & Dry Contacts Alarms
Features
RF SPECIFICATIONS:
- FREQ. RANGE = 5-3000 MHz
- CONNECTORS = F (f ) [BNC (f ) or SMA (f ) opt.]
- IMPEDANCE = 75 Ohm (50 Ohm opt.)
- RETURN LOSS IN/OUT = > 16 dB
- INSERTION LOSS = 0,3 dB typ (0,8 dB@34 Hz)
- MAX. POWER INPUT = + 30 dBm
- FLATNESS IN 36 MHz WINDOW = < 0,3 dB
- ISOLATION BETWEEN ADJACENT PATHS = > 85 dB
LNB POWER CONTROL:
- D.C. VOLTAGE = OFF, 13V, 18V (or 24 optional)
- 22 KHz TONE = ON/OFF
- MAX Current for each Input = 500 mA
- MAX Overall Current = 10 A
- LED green = OK, red = DC short circuit (Alarm)
- LED ALARM INDICATION = Via Dry Contact
DRY CONTACT ALARM:
- CONNECTOR = SUB-D9 Male
- CONTACT LOAD = 65 V – 400 mA
- A & B MAINS PSU = one defective or both
- DC Short Circuit = at LNB Input
DUAL REDUNDANT HOT SWAP PSU:
- N. 2 AC MAINS PSU = 110-240 VAC (with 2 separate Receptacles for 2 separate Power lines)
- AC POWER CONSUMPTION = 60 VA
GENERAL SPECIFICATIONS:

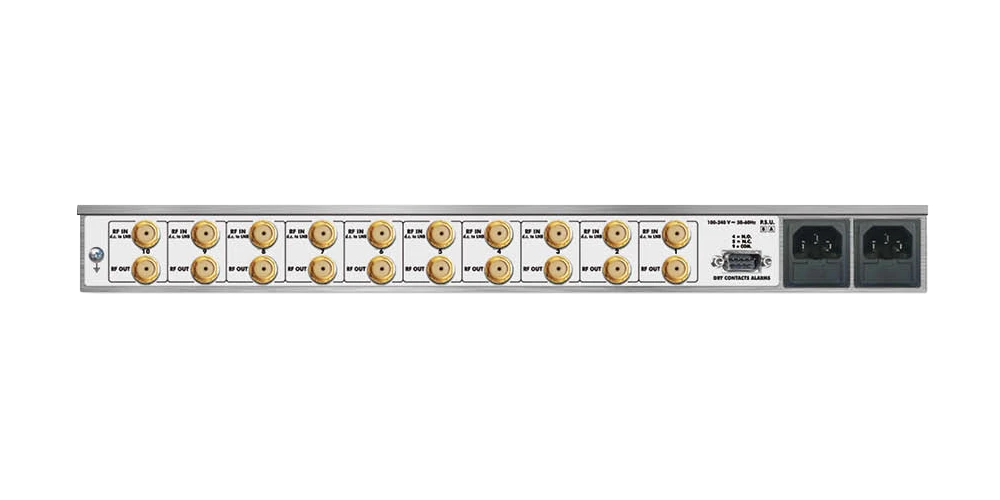

- SLIM CASE = 19” 1U Rack (35 cm depth)
- NET WEIGHT = 4,8 Kg
- SAFETY = EN 50 083-1 and EN 60 950.
- ENVIRONMENTAL CONDITIONS:
– Temperature range: –40° / + 55° (max 70°)
– Umidity 95% - EMC = EN 50 083-2
