Advanced Monitoring System for Digital Signals
MONITORING and ACQUISITION SYSTEM

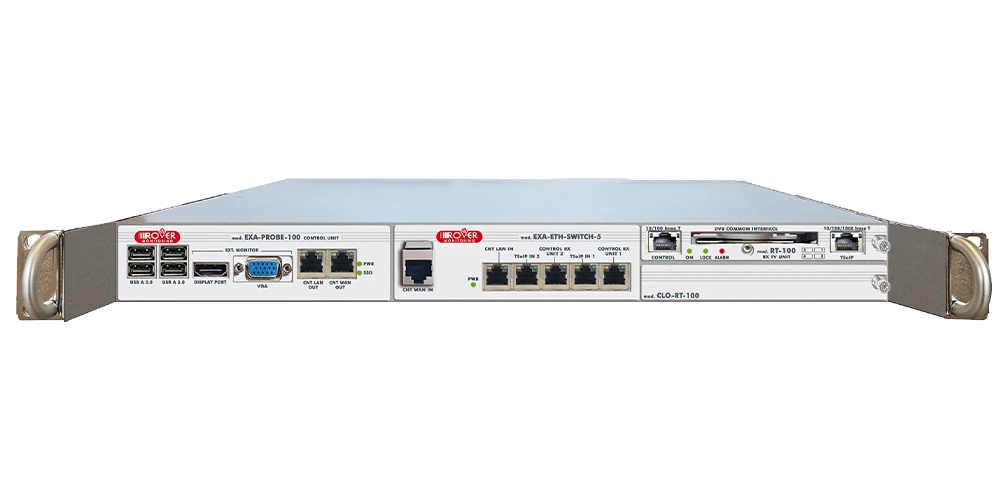

EXA probe 100 Monitoring
MONITORING and ACQUISITION SYSTEM for TV / SATELLITE / RADIO / ASI SIGNALS
Caratteristiche
The EXA PROBE Series of products are an advance Monitoring System for digital Radio, TV and SAT signals.
Its architecture includes an internal memory for direct acquisition of all alarms and measurements and the ability to interface Network Management Systems with the most modern protocols.
The EXA Probe 100 is a versatile double RF receiver unit that can be programmed to analyze multiple RF Signals, logging power, digital data, and where applicable, spectrums, constellations and echoes.
This for: DVBT & T2 (DTMB on request), DVB S & S2 & S2X, FM & DAB+ and ASI signals.
Transport Stream (TS) analysis with ETR 101-290, TS storage, display of MPEG program tables is also part of the EXA-PROBE 100 capabilities.
Its internal WEB SERVER will allow a user friendly remote access interface with any WEB BROWSER for measurements, graphs, TS analysis, spectrums analysis, playback of TS video clips and more!

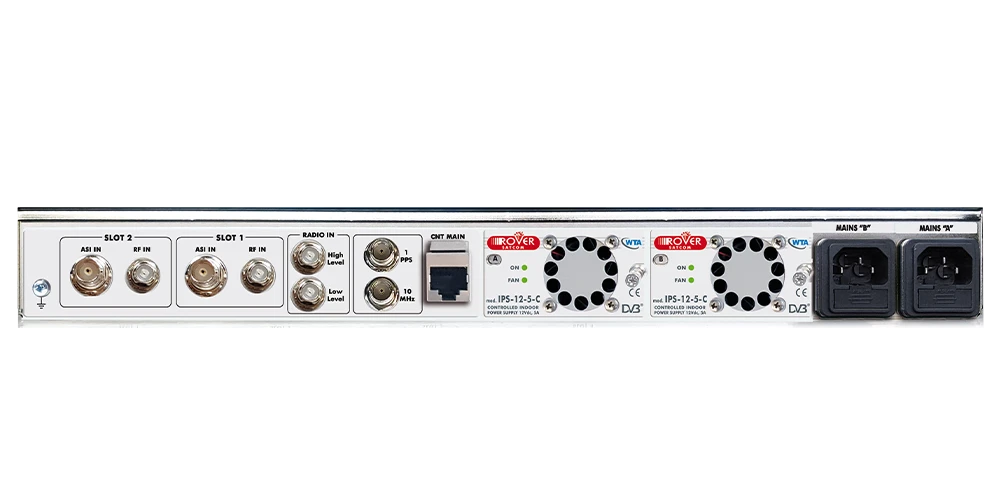

The EXA-PROBE-100, supplied with N. 2 Hot Swap Redundant PSU, can be equipped with up to 2 RF Receiver Modules.
- Integrated TV & SAT Monitoring (up to 2 Receiver boards opt.)
- FM & DAB+ Monitoring (on request)
- Service Table & Picture streaming
- Round-Robin measurements
- ETR 101-290 Transport Stream Analysis & Recording
- WEB Server with WEB Based GUI
- Remote control and SNMP alarms
- Spectrum, Constellation, Echoes Analysis
- DVB-T / T2 MI Network Delay (opt.)
- HOT-SWAP Redundant power supply
- Integrated Acquisition System
