Compact OEM Modules for RF over FIBER links
COMPACT OEM MODULES for RF Over Fiber Link

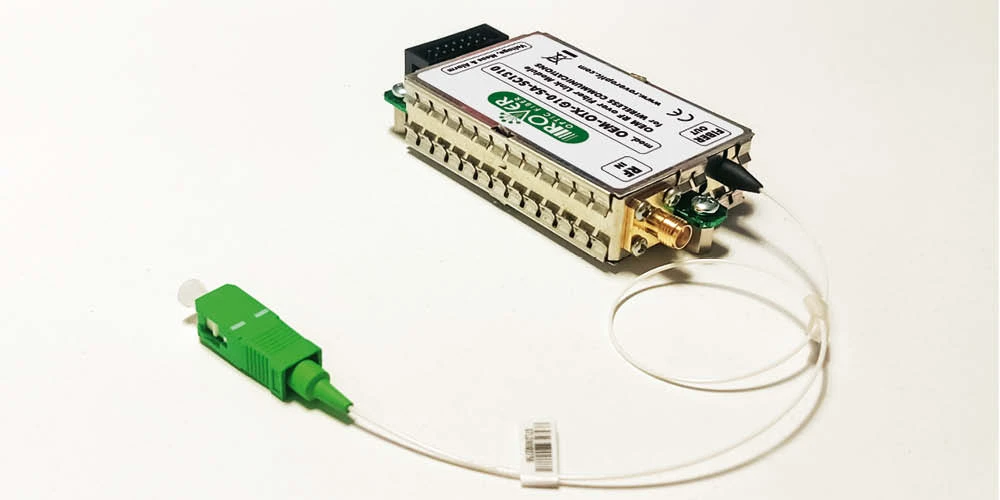

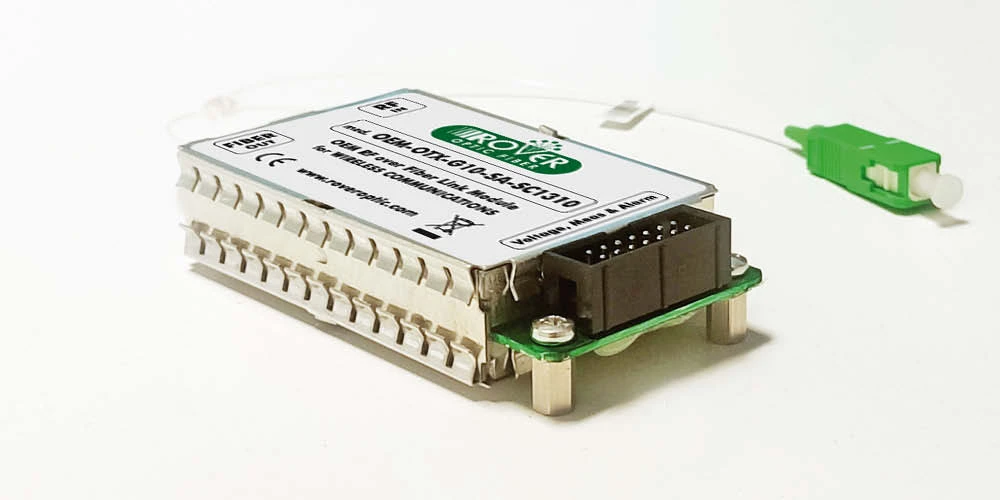

OEM1 TX Transmitter
10MHz or 50MHz – 3GHz or 50MHz - 6GHz
For Wireless Cameras & Microphones, RF, GPS, Satcom, WiFi
Caratteristiche
These compact OEM modules are very well shielded and specially designed for Wireless Cameras and Microphones in the Broadcast world.
Due to exceptionally Wide Dynamic Range and Low Noise these modules can be used in Wireless Camera systems using COFDM modulation and diversity reception.
The modules can be also easily integrated in your broadcast equipment with Optical MUX/DEMUX you can send up to 8 Signals in 1 Fiber.
Upon request Rover can supply the OEM modules with different Link Gain and different Optical and RF connectors.
Our Sales and Technical staff is available to support and advise for whatever need.
Funzionalità
- Transport all formats:
- DVB-T2/S2/C-ATSC-DAB-FM-GPS-GNNS
- Very low noise & Exceptionally Wide Dynamic Range Analog Alarm Out for:
- TX laser current/Received Optical power
- Compatible with Other Optical Link Suppliers
- Very low Consumption
- 5 Years Warranty, reliable technical support
- 2 Links gain available: 0 dB or 10 dB gain
- Protected LNA/LNB feed transit with resettable fuse
- Laser power Measurement (TX)
- RF IN power Measurement (TX)
- RF OUT power Measurement (RX)
- 5 Vdc Out, 30 mA for GPS-GNNS Active Antenna CWDM, Optical Mux/Demux for up to 2, 4, 8 channels in 1 Fiber
