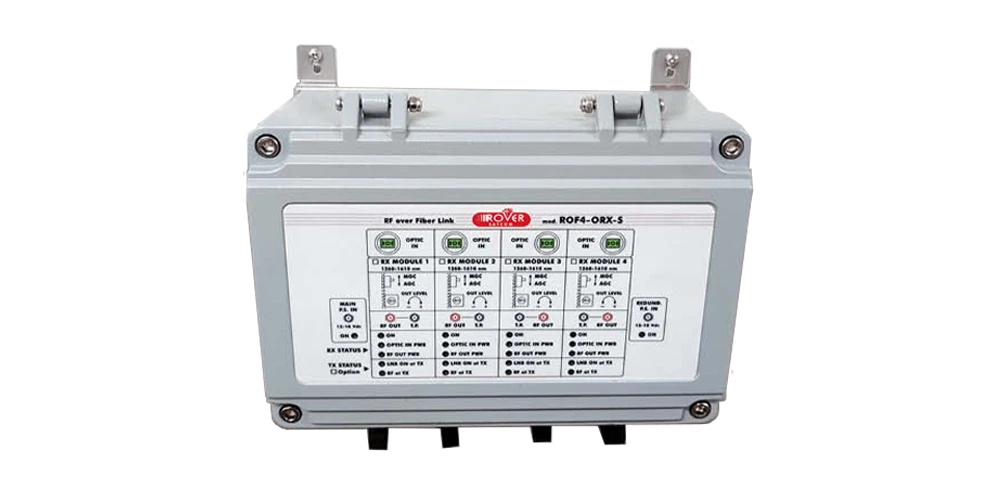

Rugged Outdoor RF-over-Fiber Link 45 MHz–3 GHz
Modular outdoor single RF Over Fiber Link
ROF 4
With third window optical Mux/Demux system
Extended band = 45 – 3000 MHz
Caratteristiche
- 45-3000 MHz for HTS Ku/Ka-band

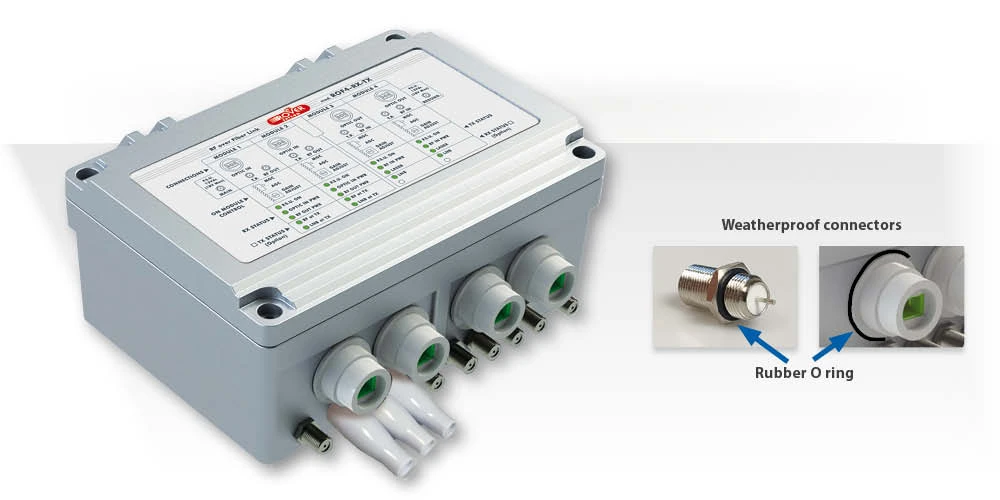

- RF & Optic Weatherproof connectors
- Mux/Demux System in third window
- 4 Wave lenght in one Fiber
- Compatible with EDFA amplifiers
- IP67 enclosure, Direct Antenna mounting
- Transport all format, RF, SATCOM, GPS, TV, DAB, FM
- MGC adjust or AGC modes
- RF monitor Port for peaking or distribution
- 2 Redundant PSU connectors
- Built-in LNB PSU, 13/18 V/22 KHz
- LNB current monitor Led at RX (opt.)
- RF laser drive monitor Led at RX (opt.)
- 5 years Warranty, Reliable Support & Training
Funzionalità
- Slots Professional RF over FIBER Link (50 – 3000 MHz)
- Aluminium Outdoor case with wall mount Supports included
- Available in three versions: 4 TX or 4 RX or 2 TX & 2 RX modules
- RF Level Test Point @-20 dB for level Monitoring
- LEDs indication for Status and Alarms
- TX equiped with Coax DFB single mode Laser 1.310 nm to 1.650 nm (opt.)
- RX equiped with Optical Photodiode PIN from 960 nm to 1.650 nm
- 2 Redundant 12V dc PSU Input to guaranty the Quality of Service
