Professional CWDM Mux/Demux
CWDM Mux / Demux
ROM 8/16

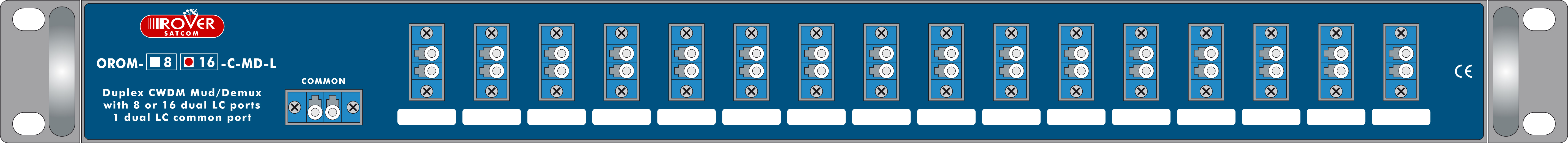

1 rack unit Duplex CWDM Mux/Demux
with 8 or 16 dual LC ports, 1 dual LC common port
Characteristics
Our company is leader in equipment manufacture designed to give a professional system for signals conversion over Fiber.
Includes various products capable to create a over fiber link of L-BAND, 12G SDI, 10G Ethernet, Audio & Video & custom solutions on request.
All with hot-swap module technology to warranty a continuous work during modules swap operation.
To complete the range we develop a full catalogue of optical products as splitters, Mux/demux, Patch panels
The OROM is a 1 rack unit Duplex CWDM MUX/Demux, available in two versions, 8 duplex wavelenght or 16 duplex wavelenght.
Is very useful to combine different signals Ethernet or SDI in case of unavailability of fibers for long distances.
|
Tecnical Specification |
||
|
Chassis |
Passive 1 rack unit |
|
|
Optical connections |
1 duplex common port, 8 or 16 Input/Output |
|
|
Number of Channels |
8 or 16 |
|
|
Fiber type |
Single mode |
|
|
Fiber waveleghts |
1310 to 1610 |
|
|
Insertion Loss |
≤ 2.5dB (8 channels). ≤ 3dB (16 channels). |
|
|
Return Loss |
≥ 45 |
|
|
Passband Ripple |
≤ 0.5dB |
|
|
Channel Passband |
± 6.5nm |
|
|
Channel Spacing |
20nm |
|
|
Center Wavelength Accuracy |
± 0.05nm |
|
|
Channel Isolation |
Adjacent ≥ 30dB Non-adjacent ≥ 40dB |
|
|
Max Optical Power |
≤ 500mW (27dBm） |
|
|
Operating Temperature |
-40 to 85°C (-40 to 185°F) |
|
